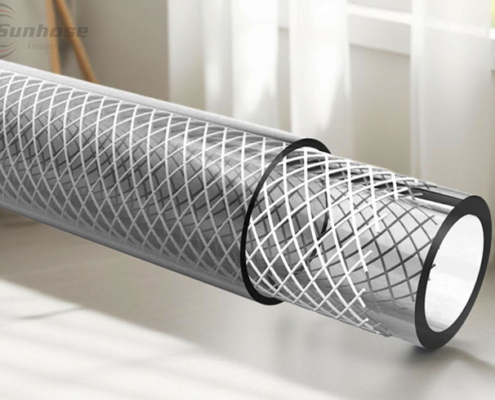

Clear Reinforced PVC Hose

Clear Reinforced Braided PVC Hose is a flexible hose that can be used for medium-pressure applications such as air, water, dilute acids, and oils. Gardening, Irrigation, And General Water Discharge. Custom sizes are available in 65 Shore A, 70 Shore A, and 80 Shore A durometer PVC. Our standard PVC tubing is available in a wide range of custom colors. A custom cutting (to length), coiling, and packaging are also available.

Alias: PVC braided hoses, Nylon Braided Hose, Hinet hose, Clear Reinforced PVC Hoses, Braid Reinforced Clear PVC Tubing. Reinforced clear PVC tubing with polyester braid, clearly reinforced water hoses, PVC braided reinforced hoses, Crystal Clear reinforced PVC tubing, and Transparent pipeline. very ideally for conveying water, oil, and gas, Widely used in construction, agricultural, fishery, project, household, and industrial service.

One of the advantages of clear reinforced PVC hoses is their versatility. They can handle a wide range of liquids, chemicals, and materials, making them suitable for various applications. The clear PVC material is non-toxic and resistant to chemicals, ensuring the safety and integrity of the transferred substances.

  • Tube:  Transparent Plasticized PVC.
  • Reinforcement: High Tensile Synthetic Textile.
  • Cover: Clear PVC with Blue Tint.
  • Application: For Gardening, Irrigation, And General Water Discharge.
  • Temp. Range. :  – 5 ̊C  to +60 ̊C (23°F to 140°F)

Specification of Clear Reinforced PVC Hose Light Duty

Reinforced clear PVC tubing with polyester braid which covers a wide range of industrial applications for the transportation of various fluids. Used for a variety of light-duty air, non-potable water, diluted chemicals, or other non-critical applications across various industries. A clear reinforced PVC hose is a type of hose that combines the transparency of clear PVC (polyvinyl chloride) material with the strength and support of reinforcement. It is commonly used in a variety of industries and applications where the visibility of the contents and the need for structural integrity are both important.

Part No. Size I.D. O.D. Length W.P. B.P. Weight
# Inch mm mm m/coil Bar Bar kg/m
SHRL0610 1/4″ 6 10 100 10 40 0.07
SHRL0812 5/16″ 8 12 100 10 40 0.08
SHRL1014 3/8″ 10 14 100 9 35 0.10
SHRL1216 1/2″ 12 16 50 7 20 0.12
SHRL1217 1/2″ 12 17 50 8 24 0.15
SHRL1317 1/2″ 13 17 50 7 20 0.13
SHRL1519 5/8″ 15 19 50 6 20 0.14
SHRL1620 5/8″ 16 20 50 6 20 0.15
SHRL1621 5/8″ 16 21 50 7 21 0.19
SHRL1923 3/4″ 19 23 50 4 12 0.17
SHRL1924 3/4″ 19 24 50 4 12 0.22
SHRL2024 3/4″ 20 24 50 4 12 0.18
SHRL2227 7/8″ 22 27 50 4 12 0.25
SHRL2529 1″ 25 29 50 3 9 0.22
SHRL2530 1″ 25 30 50 4 12 0.28
SHRL3238 1-1/4″ 32 38 40 3 10 0.43
SHRL3845 1-1/2″ 38 45 40 3 10 0.59
SHRL4555 1 -3/4″ 45 55 30 3 10 1.02
SHRL5059 2″ 50 59 30 3 10 1.01

Specification of Clear Reinforced PVC Hose Heavy Duty

Part No. Size I.D. O.D. Length W.P. B.P. Weight
# Inch mm mm m/coil Bar Bar kg/m
SHR0510 13/64″ 5 10 100 12 40 0.08
SHR0611 1/4″ 6 11 100 12 36 0.09
SHR0813 5/16″ 8 13 100 10 30 0.11
SHR1015 3/8″ 10 15 100 10 30 0.13
SHR1218 1/2″ 12 18 100 9 27 0.19
SHR1622 5/8″ 16 22 50 8 24 0.23
SHR1925 3/4″ 19 25 50 6 18 0.27
SHR2228 7/8″ 22 28 50 5 15 0.31
SHR2531 1″ 25 31 50 5 15 0.34
SHR3240 1-1/4″ 32 40 40 4 12 0.59
SHR3846 1-1/2″ 38 46 40 4 12 0.69
SHR4556 1 -3/4″ 45 56 30 4 12 1.14
SHR5062 2″ 50 62 30 4 12 1.38
SHR6478 2-1/2″ 64 78 20 4 12 2.03
SHR7692 3″ 76 92 20 4 12 2.75

Material and Production of Reinforced Braided PVC Hose

clear reinforced pvc hose
flexible braided pvc hose

Package Style of Reinforcement PVC Hose

package pvc reinforced hose
clear pvc braided hose package
