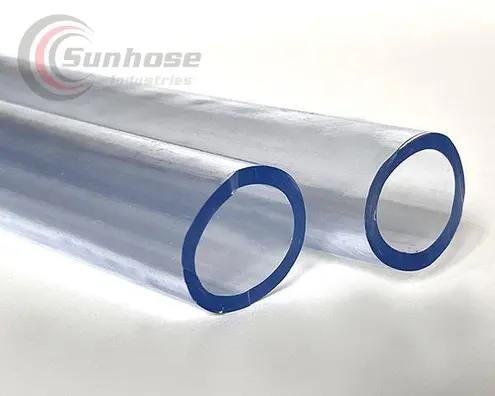

Flexible Transparent PVC Hose
This is flexible transparent PVC tubing without textile reinforcement. Its pressure values belong to this unreinforced series; use the separate reinforced-hose specifications when reinforcement is required.
- ⏱ Lead time: 25-30 days
- ✓ Strict QC
- 🌍 Global Shipping
- 🏭 Factory Direct
✓ Reply within 8 hours · FOB China · MOQ: Confirm by model (m)
Features
- Listed sizes: 3/16" – 2" (5 – 50 mm)
- Working pressure: 1 – 2 bar
- Temperature range: -5°C – +60°C
Application selection
Confirm the selected model, medium and operating conditions for the intended application. Listed application areas do not establish certification or approval for every configuration.
- Aquariums
- Laboratory tubing
- Food dispensing
- Low-pressure water transfer
- Drainage
Construction and selection
This is flexible transparent PVC tubing without textile reinforcement. Its pressure values belong to this unreinforced series; use the separate reinforced-hose specifications when reinforcement is required.
The listed models cover 3/16" – 2" (5 – 50 mm). Select an actual row in the specification table; the range does not mean every intermediate size is stocked. Sizes outside the table require a separate quotation and specification.
Operating specifications
The working pressures listed for this series are 1 – 2 bar. Use the value for the selected model and grade, not the highest value across the series. Working pressure and burst pressure are separate limits; a burst-test value is not an operating pressure. Where BP is listed, use its pairing with WP in the same row; do not assume one burst ratio for every model.
The published range for the standard construction is -5°C – +60°C. Confirm continuous operation with the actual fluid, pressure and duty cycle. No separate short-term peak rating is documented for this series; higher-temperature operation requires a separately confirmed specification.
Provide the medium, concentration, temperature and operating pressure. Confirm compatibility for the selected compound and fittings. Food-contact, drinking-water or other regulated uses require documents covering the actual model and intended use; they are not included merely because the hose is PVC, rubber or TPU.
Supply format and options
The model table lists coil lengths of 40, 50, 100 m. Check the length against the chosen model. The hose ratings describe the hose itself. Cut lengths, connectors and finished assemblies must be agreed in the quotation, including end fittings and any assembly testing. A coil length does not specify a finished assembly length or rating.
The listed model and material define the standard specification shown here. Treat requests for other compounds, colors, reinforcement, sizes or compliance documents as separate options, subject to written confirmation. A generic material name or standard reference is not a certificate for every model.
MOQ: Confirm by model (m). Bulk hose: m; Finished assemblies: pieces — Confirm by model.
## Model specifications and drawings
| Part No. | Size | I.D. | O.D. | Length | W.P. | B.P. | Weight | RFQ |
|---|---|---|---|---|---|---|---|---|
| # | Inch | mm | mm | m/coil | Bar | Bar | kg/m | |
| SHC0507 | 3/16" | 5 | 7 | 100 | 2 | 6 | 0.03 | RFQ |
| SHC0608 | 1/4" | 6 | 8 | 100 | 1.5 | 5 | 0.03 | RFQ |
| SHC0810 | 5/16" | 8 | 10 | 100 | 1.5 | 5 | 0.04 | RFQ |
| SHC1012 | 3/8" | 10 | 12 | 100 | 1.5 | 4 | 0.05 | RFQ |
| SHC1215 | 1/2" | 12 | 15 | 50 | 1.5 | 4 | 0.09 | RFQ |
| SHC1518 | 5/8" | 15 | 18 | 50 | 1 | 3 | 0.10 | RFQ |
| SHC1922 | 3/4" | 19 | 22 | 50 | 1 | 3 | 0.13 | RFQ |
| SHC2530 | 1“ | 25 | 30 | 50 | 1 | 3 | 0.29 | RFQ |
| SHC3238 | 1-1/4" | 32 | 38 | 40 | 1 | 3 | 0.45 | RFQ |
| SHC3844 | 1-1/2" | 38 | 44 | 40 | 1 | 3 | 0.52 | RFQ |
| SHC5058 | 2" | 50 | 58 | 40 | 1 | 2.5 | 0.92 | RFQ |
Frequently Asked Questions
What construction does this series use?
This is flexible transparent PVC tubing without textile reinforcement. Its pressure values belong to this unreinforced series; use the separate reinforced-hose specifications when reinforcement is required.
Which sizes belong to the listed series?
The listed models cover 3/16" – 2" (5 – 50 mm). Select an actual row in the specification table; the range does not mean every intermediate size is stocked. Sizes outside the table require a separate quotation and specification.
What working pressure should I use?
The working pressures listed for this series are 1 – 2 bar. Use the value for the selected model and grade, not the highest value across the series. Working pressure and burst pressure are separate limits; a burst-test value is not an operating pressure. Where BP is listed, use its pairing with WP in the same row; do not assume one burst ratio for every model.
What is the temperature range, including short-term peaks?
The published range for the standard construction is -5°C – +60°C. Confirm continuous operation with the actual fluid, pressure and duty cycle. No separate short-term peak rating is documented for this series; higher-temperature operation requires a separately confirmed specification.
Is this bulk hose or a finished assembly?
The model table lists coil lengths of 40, 50, 100 m. Check the length against the chosen model. The hose ratings describe the hose itself. Cut lengths, connectors and finished assemblies must be agreed in the quotation, including end fittings and any assembly testing. A coil length does not specify a finished assembly length or rating.
How should suitability for the application be confirmed?
Provide the medium, concentration, temperature and operating pressure. Confirm compatibility for the selected compound and fittings. Food-contact, drinking-water or other regulated uses require documents covering the actual model and intended use; they are not included merely because the hose is PVC, rubber or TPU.
Are other materials, sizes or certified versions standard?
The listed model and material define the standard specification shown here. Treat requests for other compounds, colors, reinforcement, sizes or compliance documents as separate options, subject to written confirmation. A generic material name or standard reference is not a certificate for every model.
What information is needed for a quotation and minimum order?
MOQ: Confirm by model (m). Bulk hose: m; Finished assemblies: pieces — Confirm by model. Send the model, size, material, intended medium, operating conditions and quantity. Specify bulk hose in metres and assemblies or fittings in pieces. Confirm minimum quantity, packaging and lead time in the quotation for the chosen configuration; optional versions may have different order requirements.
