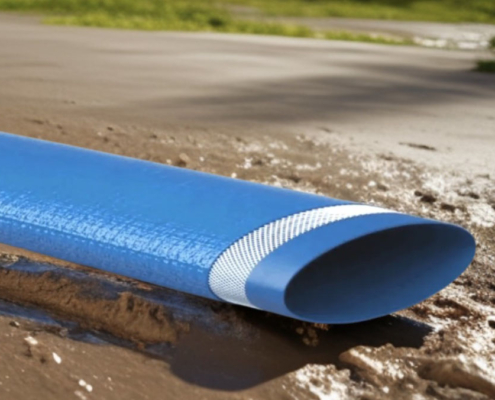

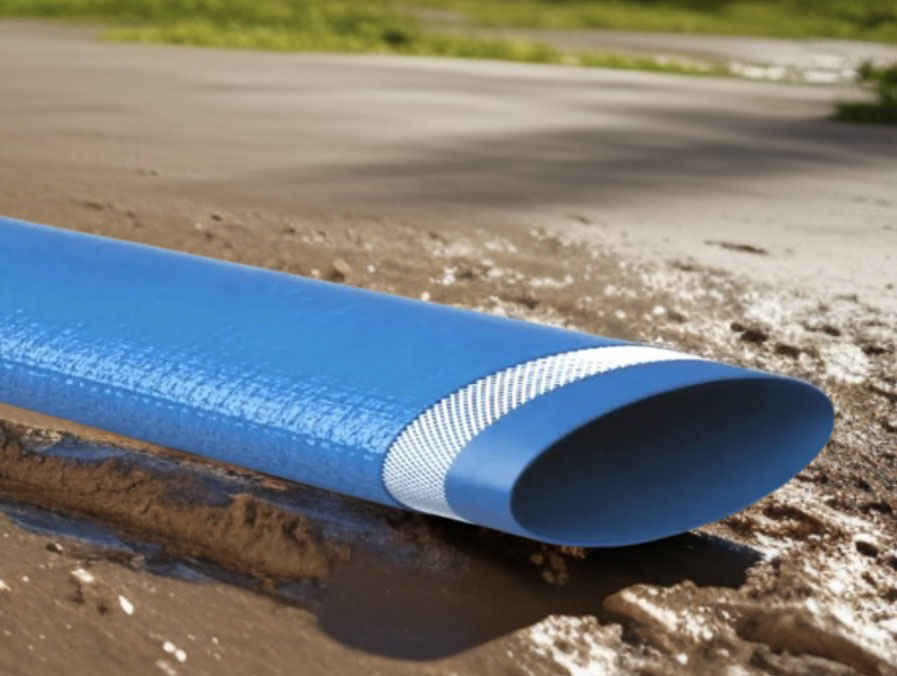

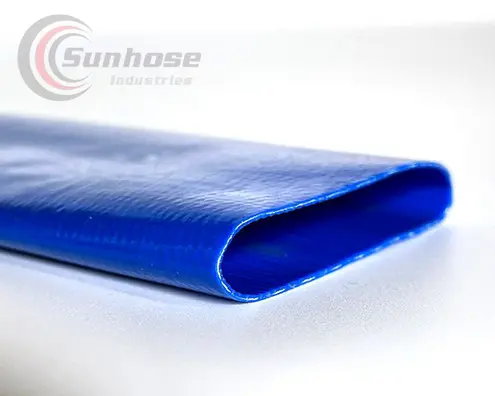

Layflat Hose Light Duty
Layflat hose is commonly referred to as lay flat hose, discharge hose, backwash hose, pump hose, construction hose, pool discharge hose, flat Irrigation hose pipe, and the flat hose, mining hose, lay flat irrigation hose.
- Tube: Flexible PVC Lining.
- Reinforcement: High Tensile Synthetic Textile.
- Cover: Light Chemicals And Weather Resistant PVC Outer Cover.
- Application: For Light Duty Discharge Of Watering Agriculture And Industry.
- Temp. Range. : – 5 ̊C to +60 ̊C (23°F to 140°F)
Specification of Lay flat Hose Light Duty
Layflat Hose is perfect for use with water, light chemicals, and other industrial, agricultural, irrigation, mining, and construction fluids. Manufactured with a continuous high tensile strength polyester fiber circularly woven to provide reinforcement, it is one of the most durable lay flat hoses in the industry and is designed as a standard duty hose in residential, industrial, and construction applications.
Part No. | Size | I.D. | Thickness | Length | W.P. | B.P. | Weight | ||
---|---|---|---|---|---|---|---|---|---|
# | Inch | mm | mm | m/coil | Bar | PSI | Bar | PSI | kg/m |
SH40025 | 1” | 25 | 1.3 | 100 | 4 | 60 | 15 | 180 | 0.15 |
SH40032 | 1-1/4″ | 32 | 1.2 | 100 | 4 | 60 | 15 | 180 | 0.17 |
SH40038 | 1-1/2″ | 38 | 1.2 | 100 | 4 | 60 | 15 | 180 | 0.19 |
SH40051 | 2″ | 51 | 1.0 | 100 | 4 | 60 | 12 | 180 | 0.22 |
SH40064 | 2-1/2″ | 64 | 1.1 | 100 | 4 | 60 | 12 | 180 | 0.30 |
SH40076 | 3″ | 76 | 1.1 | 100 | 4 | 60 | 12 | 180 | 0.35 |
SH40103 | 4″ | 103 | 1.3 | 100 | 4 | 60 | 12 | 180 | 0.55 |
SH40127 | 5″ | 127 | 1.3 | 100 | 3.5 | 51 | 10 | 153 | 0.75 |
SH40153 | 6″ | 153 | 1.3 | 100 | 3 | 45 | 9 | 135 | 0.90 |
SH40203 | 8″ | 203 | 2.0 | 100 | 3 | 45 | 9 | 135 | 1.60 |
SH40255 | 10″ | 255 | 2.4 | 50 | 2.5 | 40 | 7 | 120 | 2.60 |
SH40305 | 12″ | 305 | 2.3 | 50 | 2 | 30 | 6 | 90 | 3.00 |
SH40358 | 14″ | 358 | 3.0 | 50 | 2 | 30 | 6 | 90 | 5.00 |
SH40408 | 16“ | 408 | 3.0 | 50 | 2 | 30 | 6 | 90 | 6.00 |
