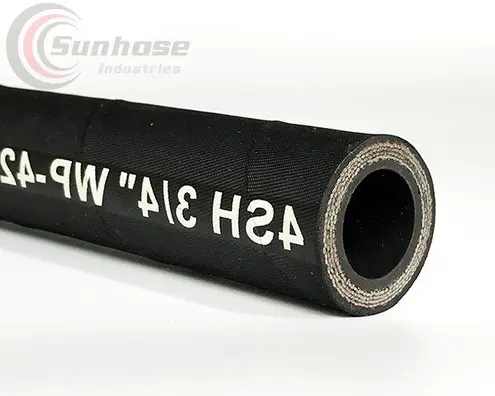

Hydraulic Hose DIN EN 856 4SH

Hydraulic Hose DIN EN 856 4SH very high pressure, pulsating applications used for petroleum-based hydraulic fluids. Wire wrapped in alternating directions, and oil and weather-resistant synthetic rubber cover.4sh high-pressure hose.

The Hydraulic Hose DIN EN 856 4SH is a type of hydraulic hose that conforms to the DIN EN 856 4SH standard. This standard specifies the requirements for high-pressure hydraulic hoses used in demanding applications. The hose is designed to withstand extreme pressures and provide efficient transmission of hydraulic power.

The designation “DIN EN 856 4SH” refers to the German Institute for Standardization (DIN) standard and the European Norm (EN) standard that govern hydraulic hoses. DIN EN 856 4SH outlines the construction, performance, and compatibility of the hose with hydraulic fluids, ensuring its reliability and performance in high-pressure hydraulic systems.

  • Tube: Oil-resistant synthetic rubber.
  • Reinforcement: Four alternating layers of spiraled high-tensile steel wire.
  • Cover: Abrasion and weather-resistant synthetic rubber.
  • Application: Very high pressure, pulsating applications used for petroleum-based hydraulic fluids.
  • Temp. Range. :  -40°C To +100°C (-40°F To +212°F)

Specification of Hydraulic Hose DIN EN 856 4SH

Hydraulic Hose DIN EN 856 4SH High-pressure hose with four layers of high tensile steel wire. This product can be used for hydraulic systems of ultrahigh pulsating pressure with high temperature working fluids for oil-based.

The DIN EN 856 4SH hydraulic hose is commonly used in heavy-duty hydraulic systems found in industries such as construction, mining, and agriculture. It is capable of handling extremely high hydraulic pressures and effectively transmitting hydraulic power between various components, including pumps, valves, cylinders, and motors.

When selecting this hydraulic hose, it is important to consider factors such as the required hose size (diameter), pressure rating, temperature range, and compatibility with hydraulic fluids used in the system. Adhering to manufacturer guidelines and industry standards for hose installation, routing, and maintenance is crucial to ensure optimal performance and longevity.

Part No. SIZE SAE I.D W.D O.D W. P P.P B.P min B.R W.T
# mm inch Dash Min Max Min Max Min Max Mpa Psi Mpa Psi Mpa Psi inch mm Kg/m
SH4SH19 19 3/4″ -12 18.6 19.8 27.6 29.2 31.4 33 42 6090 84 12180 168 24360 11.02 280 1.70
SH4SH25 25 1″ -16 25 26.4 34.4 36 37.5 39.9 38 5510 76 11020 152 22040 13.39 340 2.50
SH4SH32 31.5 1-1/4″ -20 31.4 33 40.9 42.9 43.9 47.1 32.5 4710 65 9425 130 18850 18.11 460 3.00
SH4SH38 38 1-1/2″ -24 37.7 39.3 47.8 49.8 51.9 55.1 29 4205 58 8410 116 16820 22.05 560 3.60
SH4SH51 51 2″ -32 50.4 52 62.2 64.2 66.5 69.7 25 3625 50 7250 100 14500 27.56 700 5.00

Material and Production of Hydraulic Hose DIN EN 856 4SH

4SH Hydraulic Rubber Hose
workshop of hydraulic hose

Package Style of Hydraulic Hose DIN EN 856 4SH

Package style of hydraulic hose
