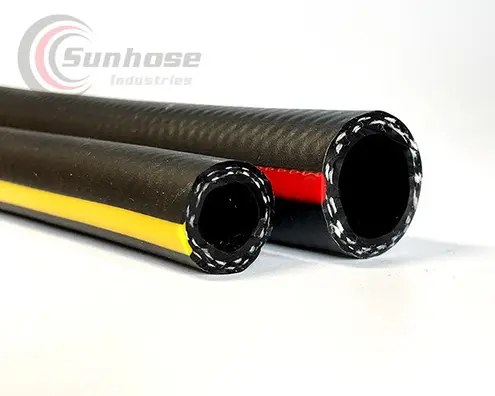

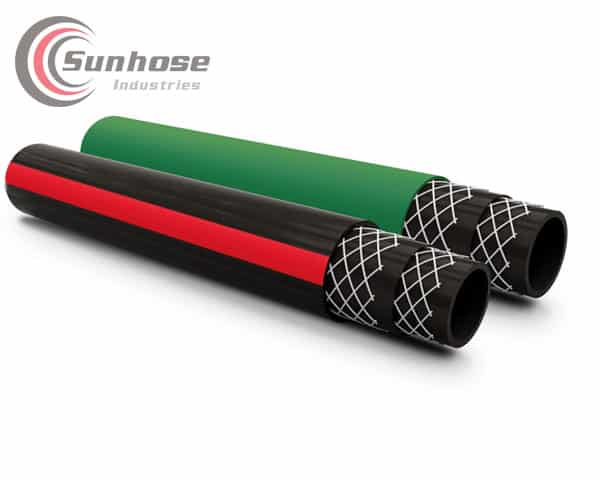

PVC High Pressure Spray Hose
PVC High Pressure Spray Hose is widely used in high-pressure washers, air compressors, and pneumatic tools. In agriculture, the high-pressure PVC spray hose is used for spraying pesticides, fungicides, and fertilizer solutions.
Alias: Yellow Spray hoses, PVC Spray Hoses, PVC Agricultural Spray hoses, Flexible PVC Reinforced Hose Tubing, High-pressure PVC Hoses, Double Reinforced PVC Spray Hoses. It is light, durable, flexible, anti-erosion, abrasion, weather oil, acid, alkali explosion & high-pressure resistant, anti-bending, and has a nice bright surface.
A high-pressure PVC spray hose is a specialized type of hose designed for applications that require the transport of fluids under high pressure. It is made from PVC (polyvinyl chloride) material, which provides flexibility, durability, and resistance to abrasion. High-pressure PVC spray hoses are commonly used in agriculture, pest control, landscaping, and other industries that involve spraying liquids at elevated pressures.
- Tube: Black Plasticized PVC.
- Reinforcement: High Tensile Spiral Polyester Yarn 2 layers.
- Cover: Ribbed Blended PVC & Smooth PVC.
- Application: For air, water, and moderate chemical.
- Temp. Range. : – 5 ̊C to +60 ̊C (23°F to 140°F)
Specification of PVC High Pressure Spray Hose
PVC High Pressure Spray Hose can be produced with abrasion-resistant ribbed covers or smooth covers. Resistant to Fertilizers and Most Pesticides, spray hoses are made with premium quality PVC compounds, ideally suited for lawn and ornamental spray applications using wettable powder chemicals. These hoses are engineered to withstand the high pressures typically generated by spray equipment, such as sprayers, pumps, and pressure washers. They are reinforced with a strong textile or synthetic fiber layer to enhance their strength and prevent bursting or leakage under high-pressure conditions. When selecting a high-pressure PVC spray hose, it is important to consider factors such as the required hose diameter, length, maximum working pressure, and temperature range. It’s essential to choose a hose that can withstand the specific pressure and temperature requirements of your spraying equipment.
| Part No. | Size | I.D. | O.D. | Length | W.P. | B.P. | Weight |
| # | Inch | mm | mm | m/coil | Bar | Bar | kg/m |
| SHSP65135 | 1/4″ | 6.5 | 13.5 | 100 | 40 | 160 | 0.14 |
| SHSP85155 | 5/16″ | 8.5 | 15.5 | 100 | 40 | 150 | 0.17 |
| SHSP95165 | 3/8″ | 9.5 | 16.5 | 100 | 40 | 120 | 0.19 |
| SHSP01017 | 3/8″ | 10 | 17 | 50 | 40 | 120 | 0.19 |
| SHSP01220 | 1/2″ | 12 | 20 | 50 | 30 | 100 | 0.26 |
| SHSP01626 | 5/8″ | 16 | 26 | 50 | 30 | 85 | 0.43 |
| SHSP01929 | 3/4″ | 19 | 29 | 50 | 25 | 75 | 0.49 |
| SHSP02535 | 1″ | 25 | 35 | 50 | 25 | 60 | 0.61 |
Material and Production of PVC High Pressure Spray Hose
Package Style of PVC High Pressure Spray Hose
